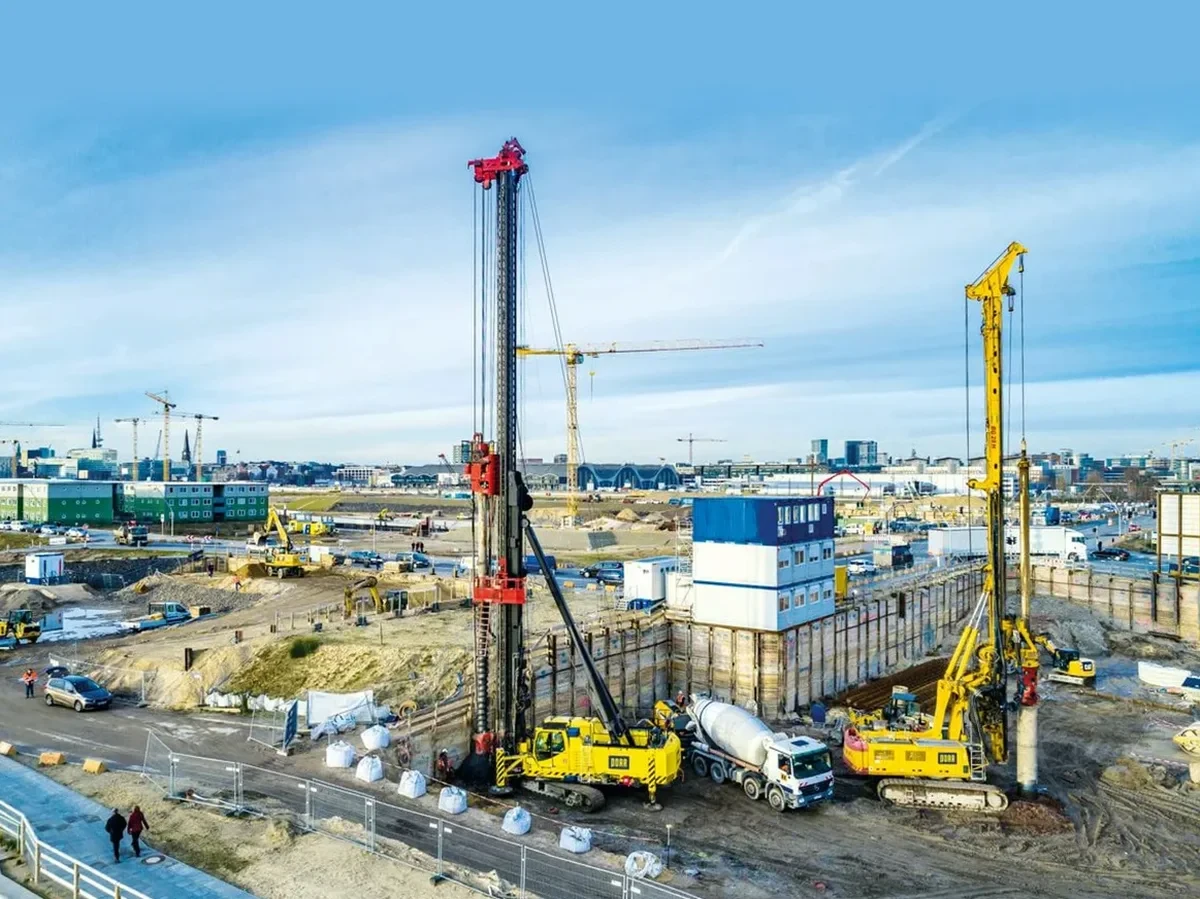

In Upper Hutt, the ground beneath your project rarely tells a simple story. The Hutt River has spent millennia depositing interbedded sequences of gravels, sands, and silts across the valley floor, creating a stratigraphic profile that shifts dramatically within a single site. When borelogs show loose sands at 4 metres overlying dense gravels at 9 metres, the pile design decision is not academic—it is the difference between a foundation that settles 5 mm and one that settles 40 mm. The engineering team working across Upper Hutt approaches pile foundation design by first understanding the depositional history of the site, then selecting pile type, diameter, and founding depth based on CPT cone resistance and SPT N-values correlated to NZGS (2005) soil classification. This is not a parametric exercise run from a spreadsheet template; it is a site-specific interpretation where local experience with Hutt Valley ground conditions informs every shaft friction and end-bearing calculation, and where CPT testing often provides the continuous profile needed to identify thin compressible layers that discrete SPT intervals might miss.
A pile is only as reliable as the ground it bypasses—in Upper Hutt, that means crossing liquefiable silts to reach bearing in Pleistocene gravels.
Methodology applied in Upper Hutt
Critical ground factors in Upper Hutt
The most consequential risk in Upper Hutt pile design is negative skin friction developing when liquefied surface layers reconsolidate after shaking, dragging piles downward with forces that can exceed 100 kN per pile if not explicitly accounted for. A case from a commercial development near the railway line illustrates the point: initial designs assumed neutral plane depth at the gravel interface, but CPT data revealed a 1.5-metre-thick silt lens within the gravel that would settle under cyclic loading, generating downdrag on the upper 12 metres of each pile that the structural section had not been sized to resist. The revised design increased the pile wall thickness and specified a bitumen coating over the zone of relative settlement, a detail that added marginal cost but prevented a serviceability failure that would have been expensive to remediate post-construction. Other failure modes tracked include pile head punching through thin structural slabs when the ground settles around the piles, and group effects that reduce lateral resistance when spacing falls below 3 diameters in the direction of loading.
Our services
Pile foundation design in Upper Hutt draws on a sequence of technical steps that convert ground investigation data into constructable, verifiable foundation solutions. The services below reflect the typical workflow from initial capacity assessment through to installation verification.
Axial and lateral pile capacity analysis
Computation of ultimate and allowable capacities using CPT-based methods (LCPC, Bustamante & Gianeselli) and SPT-based methods, with lateral response modelled via LPILE or equivalent p-y software incorporating site-specific soil stiffness degradation under seismic loading.
Pile group and piled raft design
Analysis of group efficiency factors, block failure mechanisms, and differential settlement across pile groups supporting multi-storey structures, including piled raft configurations where raft bearing contributes to total capacity in Upper Hutt's stiff gravels.
Installation specification and testing
Preparation of technical specifications covering pile toe inspection, concrete placement procedures, and acceptance criteria, plus design of static load test programmes and dynamic testing (PDA/CAPWAP) to verify design assumptions on site.
Frequently asked questions
What is the typical depth for piles in Upper Hutt?
Pile depths in Upper Hutt depend on where competent gravel is encountered, which varies across the valley. In areas closer to the Hutt River, piles often extend 10 to 15 metres to bypass loose alluvial sands and silts before founding in dense gravels with NSPT values above 50. Sites on the valley margins, particularly near the Akatarawa foothills, may encounter weathered greywacke at shallower depths of 6 to 10 metres. The design depth is always confirmed by CPT or SPT investigation at the specific site rather than inferred from regional mapping alone.
How much does pile foundation design cost for an Upper Hutt project?
The design fee for pile foundations typically ranges from NZ$3,210 to NZ$11,760 depending on the number of piles, the complexity of the ground profile, and whether dynamic or static load testing is required as part of the verification programme. A straightforward residential project with 8 to 12 piles on a well-characterised site falls toward the lower end, while a commercial building with pile groups, lateral analysis, and liquefaction considerations requires the higher budget. All designs are quoted after reviewing the ground investigation data.
Which pile type is most suitable for Hutt Valley ground conditions?
Driven steel H-piles are common where dense gravels are encountered within 15 metres and vibration during driving is manageable. Bored cast-in-place piles are preferred near existing structures or where obstructions are anticipated, while continuous flight auger piles suit sites with high groundwater and collapse-prone sands. The final selection balances geotechnical capacity against constructability, access constraints, and the contractor's equipment availability in the Wellington region.
How is liquefaction accounted for in pile design?
Liquefaction is addressed through a three-part approach: first, identifying liquefiable layers via CPT-based triggering analysis; second, reducing soil stiffness and strength parameters (p-multipliers) for those layers in the lateral analysis model; and third, designing the pile section to resist bending moments from lateral spreading and downdrag forces from post-liquefaction settlement. Where liquefaction risk is high, ground improvement such as stone columns may be specified before piling, or piles are extended through the liquefiable zone to competent bearing.
